active diesel refuelling UNITS
Reduce lost time on-site with the Active Diesel in-field mobile refelling tanks, ideal for larger construction sites or farming properties.
Rapid SprayBack to Rapid Spray
- Products
- Parts
- Tank Parts
- Spray Equipment
12V Pumps, parts & accessories
Engine & PTO Drive Pumps, parts & accessories
Hose Reels & Parts
Spray Guns, Lances & Accessories
12 Volt Tank Parts & Accessories
Backpack, compression & trolley sprayer parts
Spray Trailer kits, parts & accessories
Spray Tank Lids, basket filters & outlets
nozzles, boomless nozzles & boom accessories
Other Spray Parts & Accessories
Batteries & Chargers
- Diesel Refuelling Parts
- Fire Fighting Equipment
- Mining & Industrial

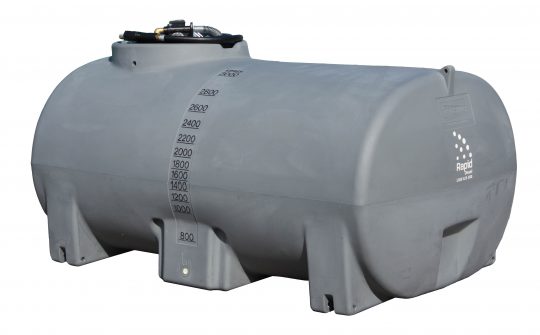

THE TOUGHEST TANKS
Manufactured in Australia using diesel grade poly which complies with International Regulation ECE R34.01, we back our Active Diesel Tanks with a huge 15-year warranty!

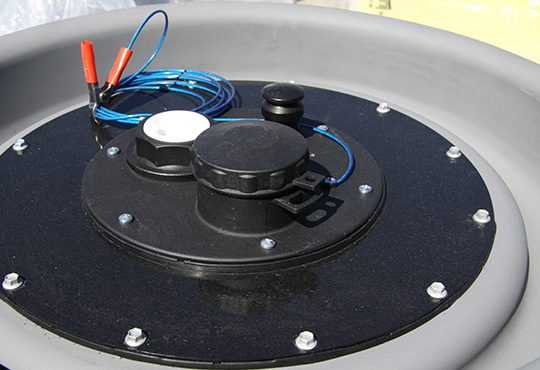

MULTI-FUNCTION 'NO SPILLS FILL' TANK LID SYSTEM
Our tank lid systems incorporate an innovative and unique splash resistant breather system, pad-lockable filler cap with strainer and anti-loss chain, spill containment lip, removable plate to allow access to the tank and an earth strap to prevent static build up.
designed for transport and ball baffles
Rapid Spray’s Ball Baffle system is suitable for use in diesel tanks and is a recommended addition to your Active Diesel tank if you are going to be doing diesel deliveries as it will greatly reduce the ‘slosh and surge’ of liquid in the tank.
UNIT SPECIFICATIONS
SPECIFICATIONS
DIMENSIONS
SPECIFICATIONS
| TANK | Â Â Â Â Â UV-stabilised polyethylene diesel grade tank with 15-year warranty |
| PUMP OPTIONS | Â Â Â Â Â 45L/min or 60L/min 12 volt Fluid Pump or 80L/min Svelto Pump with 2-year warranty |
| HOSE OPTIONS | Â Â Â Â Â 6m x 3/4 inch diesel grade hose (45L/min), 6m x 1 inch diesel grade hose (60L/min) or 4m x 1 inch diesel grade hose (80L/min) |
| OTHER FEATURES | Â Â Â Â Â 2 inch filler, mesh filter and cap, 4m battery cables, dust proof diesel breather, heavy duty auto shut-off nozzle, ‘SureFit’ mounting pins |
| Â | Â |
DIMENSIONS
| Â | L | W | H |
| 1500L UNIT 2000L UNITÂ 2500L UNIT 3000L UNIT 5000L UNIT | 1700mm 2000mm 2000mm 2340mm 2760mm | 1320mm 1420mm 1420mm 1420mm 2000mm | 1280mm 1270mm 1465mm 1400mm 1600mm |
PRODUCT MODELS
No posts found!
OPTIONAL add-on
The Ball Baffle is a liquid load baffling solution for increasing load stability and reducing wear and tear in all types of transport tanks. Ball baffles clip together to form a hollow sphere that is inserted inside the tank to break up liquid waves and prevent them from creating a dangerous surge effect when a vehicle is braking or change direction.
FIND OUT MORE ABOUT OUR ACTIVE DIESEL UNIT RANGE
Want to know more about the Active Diesel Unit range? Our team of specialists can answer all your questions and help you choose the right unit for your application and diesel requirements, all while meeting your budget. Complete the below form and we will be in contact shortly.
