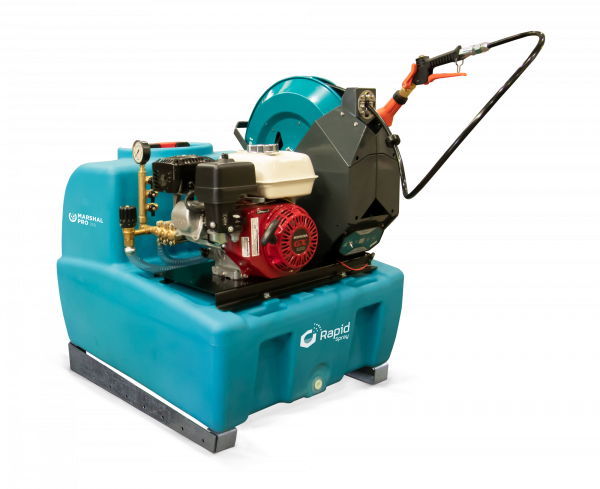

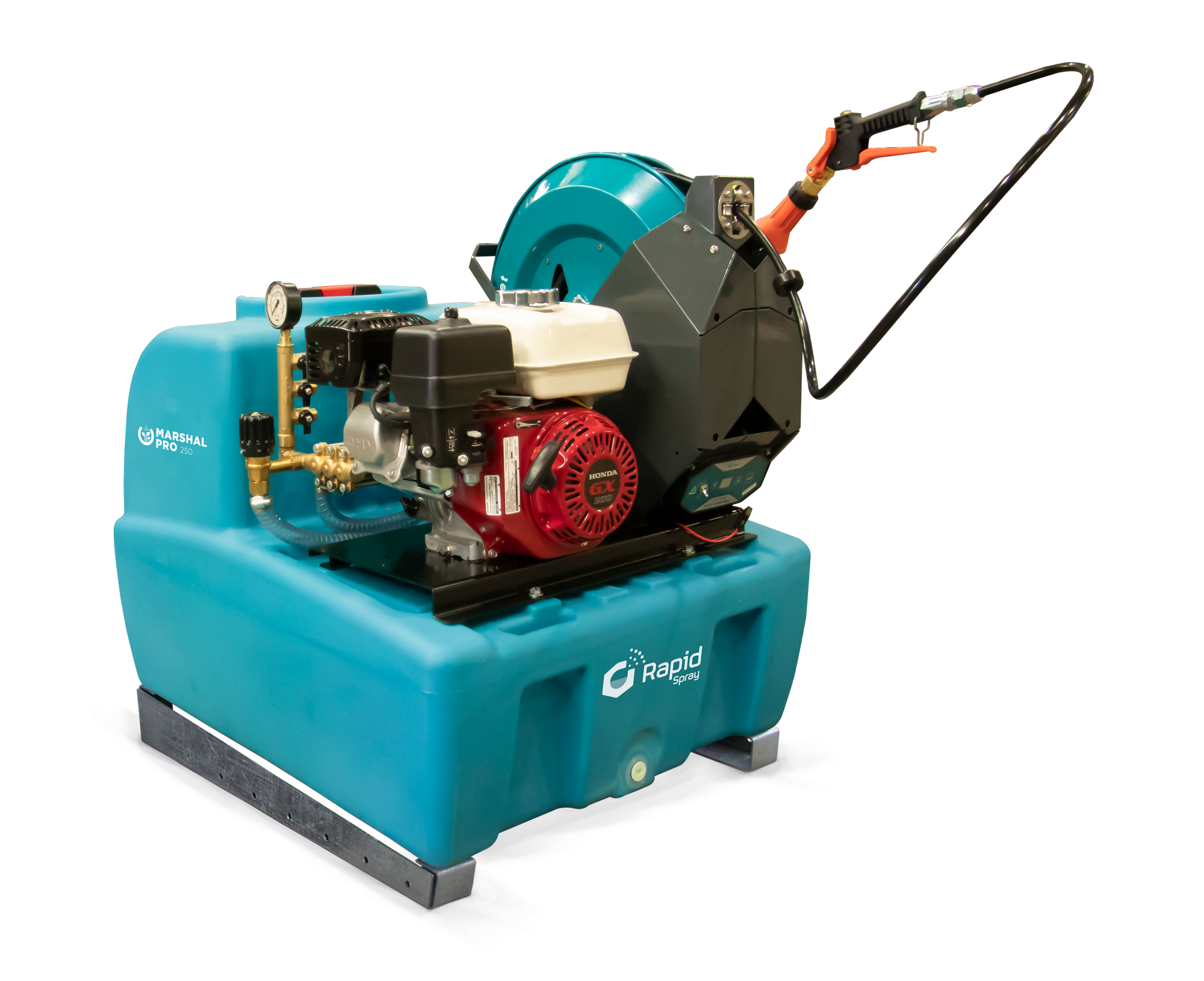

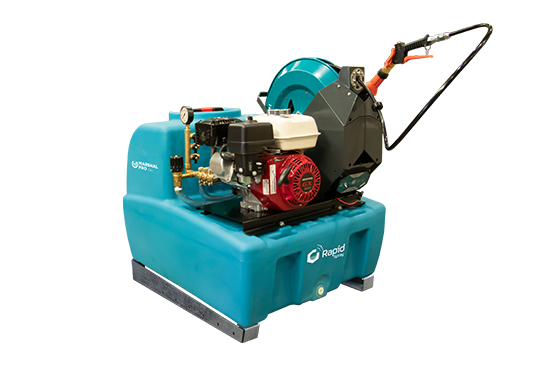

250L Buddy Marshal-XB Pro | 100m Buddy Smart Reel

The program can be reset. Please call the Customer Service team at 1800 011 000 and we can talk you through the steps to rectify this.

Yes! This tank is made in New South Wales, Australia and comes with a 15-year tank warranty.

Yes, the Flat Fold Boom is a compatible booms for this unit. The nozzles can be replaced for different spray patterns/coverage depending on your requirements. This can be used for weed control or fertiliser spray.

We recommend 10w-30 for this pump, however always consult the pump manual for your unit.

1. Make sure you’re within reach of the Buddy Reel switch panel while holding the remote.
2. Turn Reel On – Check that the reel is powered and switched on. It should flash 0.
3. Prepare the Remote:
   • If your remote has no batteries, insert one battery.
   • If your remote already has batteries, remove one.
   • Insert the remaining battery halfway so it’s ready to be pushed in.
4. Activate Pairing:
   • Press and hold both buttons on the remote.
   • At the same time, push the battery fully into place.
5. Look for Flashing Lights:
   • The remote’s green light will flash slowly.
   • The reel’s switch panel display will flash PA slowly.
6. Confirm Pairing:
   • Within 10 seconds, press the manual rewind button (↵) on the reel’s switch panel.
   • The display will flash PA quickly, then return to 0 (steady).
   • The remote’s green light may keep flashing for a few more seconds before stopping.
7. Test the Remote:
   • Once the green light stops flashing, press either button.
   • The reel should respond, confirming successful pairing.

Now your remote is ready to use!

Watch this video to find out how to pair / repair your Buddy Smart Reel 'MyPace' remote to your hose reel.
How to Pair your Buddy Smart Reel Remote


Q: Do I need to read the manuals before using the sprayer?
A: Yes. Always read the engine and pump manuals to understand safe operation and setup procedures.

Q: What should I inspect before starting the sprayer?
A: Look for any damaged, broken, or loose parts. Replace or tighten as needed before operation.

Q: Does the engine come with oil and fuel already filled?
A: No. Engines are shipped dry. You must add the correct type of oil and fuel before starting.

Q: Why should I run the sprayer with water before using chemicals?
A: Running with clean water first lets you check for leaks, test functionality, and prevent wasting or contaminating chemicals.

Q: How much water should I put in the tank before starting?
A: Fill the tank halfway with clean water. This allows enough volume to check for leaks and system flow.

Q: How should I set the regulator before starting the engine?
A: Turn the regulator to the ‘START’ position (or ‘BYPASS’ for compatible systems) before starting the engine.

Q: How long should I run the system before spraying?
A: Run it for about 30 seconds in ‘START’ or ‘BYPASS’ mode to remove all air bubbles from the return line.

Q: What steps are needed to start the engine properly?
A:
Turn fuel valve to ON.
Use CLOSED choke if engine is cold; leave it OPEN if warm.
Move throttle about 1/3 of the way toward MAX.
Turn engine switch ON.
Pull the starter cord briskly.
Gradually open the choke as the engine warms up.

Q: How do I set the engine speed?
A: Use the throttle lever to adjust to your desired spray pressure—more throttle gives higher pressure.

Q: How do I stop the engine properly?
A:
Move throttle to MIN.
Turn engine switch OFF.
Turn fuel valve OFF.

Q: What should I do before I start spraying?
A: Complete the full startup procedure and ensure that chemicals are mixed properly in the tank.

Q: How do I set the spray pressure?
A: Turn the regulator to the desired pressure range (typically 10–40 bar, depending on your setup).

Q: How do I start and stop spraying?
A:
Start: Pull the spray gun trigger.
Stop: Release the trigger. The system will automatically return liquid to the tank.

Q: Should I reduce pressure before shutting down?
A: Yes. Always turn the regulator back to ‘START’ or ‘BYPASS’ to release pressure and protect the system.

Q: Where should I mix chemicals?
A: Choose a safe, ventilated area away from water sources, drains, animals, and children.

Q: What’s the proper way to add chemicals to the tank?
A: Half-fill the tank with water first, then add chemicals according to the label instructions.

Q: How do I ensure proper mixing of the solution?
A: Stir manually with a paddle or run the pump briefly with the regulator in ‘START’ or ‘BYPASS’ mode.

Q: What should I do with used chemical containers?
A: Rinse them thoroughly, add the rinse water to the tank, and dispose of the containers safely according to local regulations.

Q: What’s the cleanup procedure after filling and spraying?
A: Wash off any chemical spills, clean the tank and lines, safely store leftover product, and dispose of waste properly.
